Silent Design Wall Exhaust Fan 100mm With Timer And Humidistat White FANSILDES100CHZ3C-W

Regular Price £241.00
Sale Price £241.00 Regular Price £0.00

Silent Design Wall Exhaust Fan 100mm With Timer And Humidistat White FANSILDES100CHZ3C-W

Regular Price £241.00
Sale Price £241.00 Regular Price £0.00
Product description
Product reviews
FAQs

Fast Processing & Shipping: Your order moves quickly after purchase.

Product Description

The Silent Design Series exhaust fans bring style and elegance to the engineering brilliance of the Silent wall fan range. They feature an advanced vibration absorbing design to ensure quiet operation and powerful air flow performance.

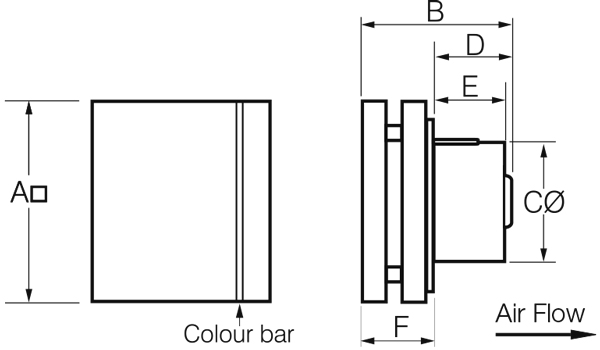

Model No. Duct Size A B CØ D E F
SILDES100.. 100
 188
 130
 99
 85
 79
 45

All dimensions in mm

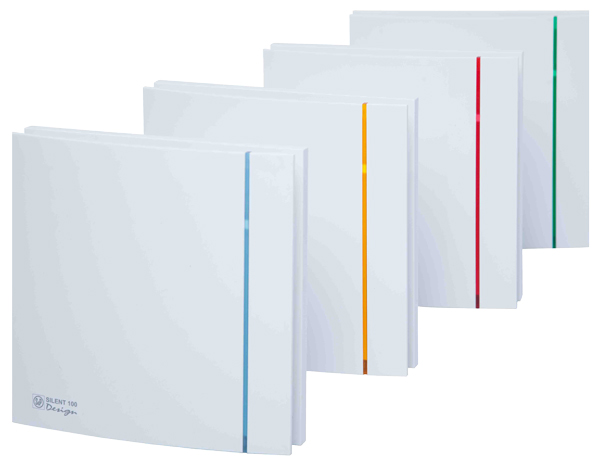

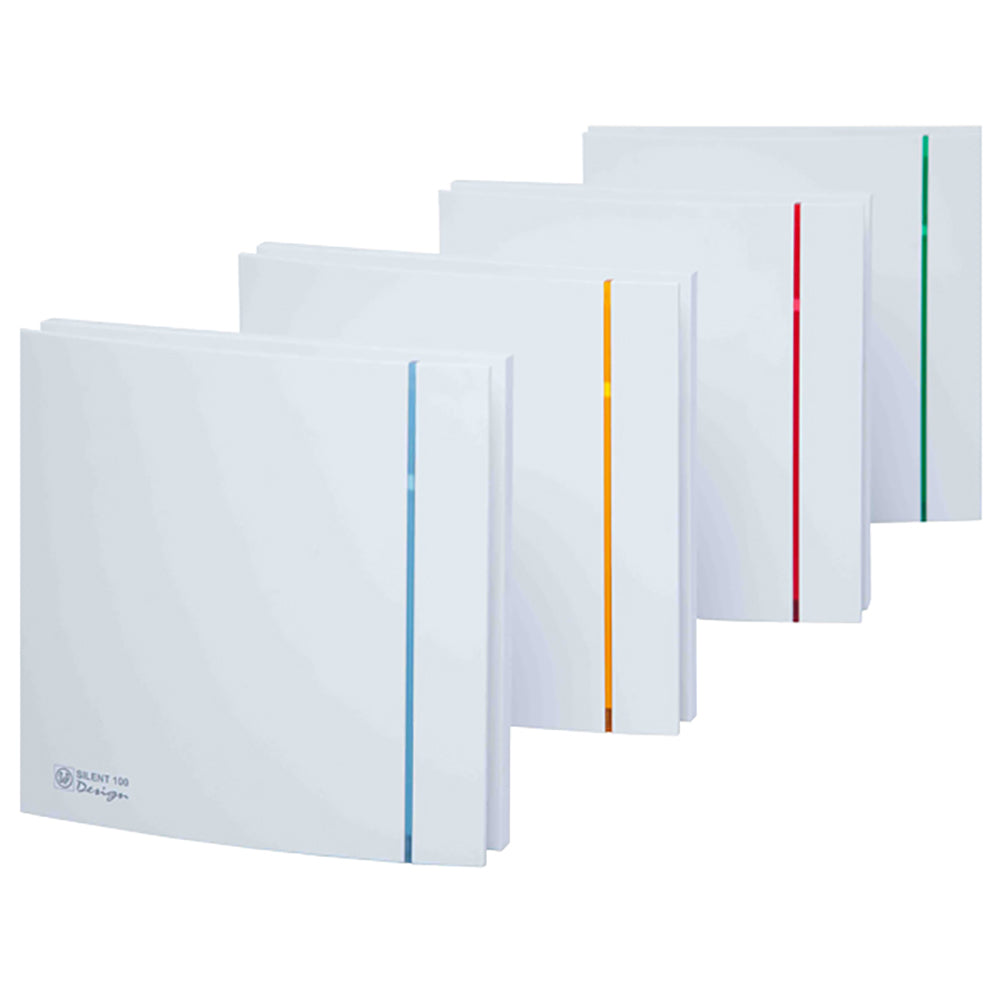

Interchanagable Colour Bars

The Silent Design can be customised with an interchangeable bar so your fan can blend in with any setting. Four colours to match the décor of the room: blue, red, green and yellow.

Product Features:

  • Quiet operation due to its noise and vibration absorbing design.
  • Comes with 4 interchangeable colour bars to match room décor.
  • Low loss foil backdraft damper is standard on all models.
  • 1-30 minute adjustable run-on timer and adjustable humidistat are available on selected models.
  • Internal thermal motor cut out protection.
  • 220-240V, single-phase, 50Hz supply.

Technical Details:

  • Backdraft Damper: Yes
  • Run-on Timer: Yes
  • Humidistat: Yes
  • m³/hr: 85 (Air flow without duct and fittings)
  • L/sec: 23 (Air flow without duct and fittings)
  • Fan Speed rpm: 2100
  • Avg. dB(A) @ 3m: 27
  • Watts: 8W
  • Volts: 230V
  • IP Rating: IP45

Dimensions:

  • Height: 188 mm
  • Width: 188 mm
  • Cut-out: 99 mm
  • Duct Size:100 mm

Brand & Design:

  • Brand: Arialighting
  • Collection: Silent Design
  • SKU: FANSILDES100CHZ3C-W
  • Colour: White

Warranty:

  • 5-year replacement warranty

Technical Specifications

This fitting must be installed by a licensed electrician.
